Leaner. Greener.
same range.
smaller package.

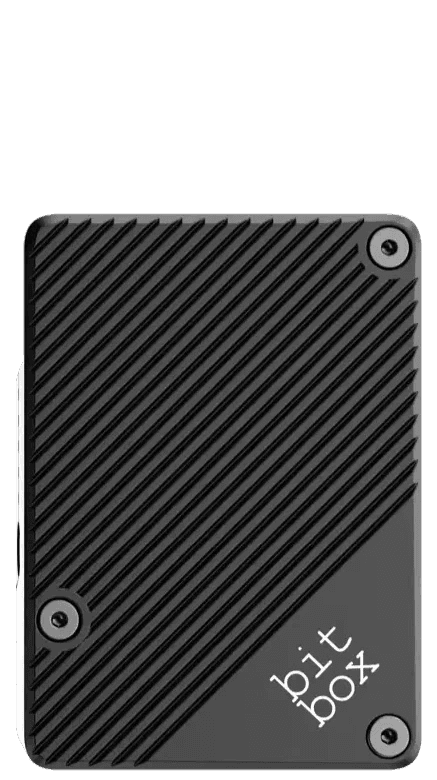

bitbox mini is the smallest and lightest camera/lighting control device on the market. If your application doesn’t need USB-C, mini is the tool for the job.
same range.
smaller package.
bitbox mini is the smallest and lightest camera/lighting control device on the market. If your application doesn’t need USB-C, mini is the tool for the job.
powerful performance on a budget.
bitbox mini is designed to expand your control system, not your budget. Pair it with bitbox as your base station for best-in-class remote control with no compromises.
powerful performance on a budget.
bitbox mini is designed to expand your control system, not your budget. Pair it with bitbox as your base station for best-in-class remote control with no compromises.
certified.
Like its bigger sibling, bitbox mini is the only FCC, ISED, and CE-compliant device on the market. It’s ready for use in the most heavily-regulated and RF-managed environments across North America and Europe.
certified.
Like its bigger sibling, bitbox mini is the only FCC, ISED, and CE-compliant device on the market. It’s ready for use in the most heavily-regulated and RF-managed environments across North America and Europe.
black is the new green.
black is the
new green.
bitbox mini is manufactured in an RoHS-compliant facility and injection molded from 60% post-consumer recycled plastic.
black is the new green.
bitbox mini is manufactured in an RoHS-compliant facility and injection molded from 60% post-consumer recycled plastic.
specifications
specifications
side by side comparison
side by side comparison
bitbox mini
bitbox
Weight
49g
98g
MSRP
$479
$1199
construction
60% post consumer recycled plastic, injection molded;
7075-T6 machined aluminum (mounting plate)
7075-T6 and 6061-T6 machined aluminum
Range
1km line of sight
1km line of sight
Radio Module
Bit Part BP.BBR.V1.915
Bit Part BP.BBR.V1.915
Functions
Remote Only
Base Station or Remote
Ports
LEMO 2 Pin (Power In)
100Mbps Ethernet
LEMO 2 Pin (Power In)
1Gbps Ethernet
USB-C (Power In/Out, Ethernet Communication)
Internal Expansion
USB-C Ethernet Controller
USB-C PD Power In/Out
Internal Expansion Connector
Internal Ethernet Switch
1Gbps
FCC Certified
shipping june 2025
bitbox mini
bitbox
Weight
49g
98g
MSRP
$479
$1199
construction
60% post consumer recycled plastic, injection molded;
7075-T6 machined aluminum (mounting plate)
7075-T6 and 6061-T6 machined aluminum
Range
1km line of sight
1km line of sight
Radio Module
Bit Part BP.BBR.V1.915
Bit Part BP.BBR.V1.915
Functions
Remote Only
Base Station or Remote
Ports
LEMO 2 Pin (Power In)
100Mbps Ethernet
LEMO 2 Pin (Power In)
1Gbps Ethernet
USB-C (Power In/Out, Ethernet Communication)
Internal Expansion
USB-C Ethernet Controller
USB-C PD Power In/Out
Internal Expansion Connector
Internal Ethernet Switch
1Gbps
FCC Certified
